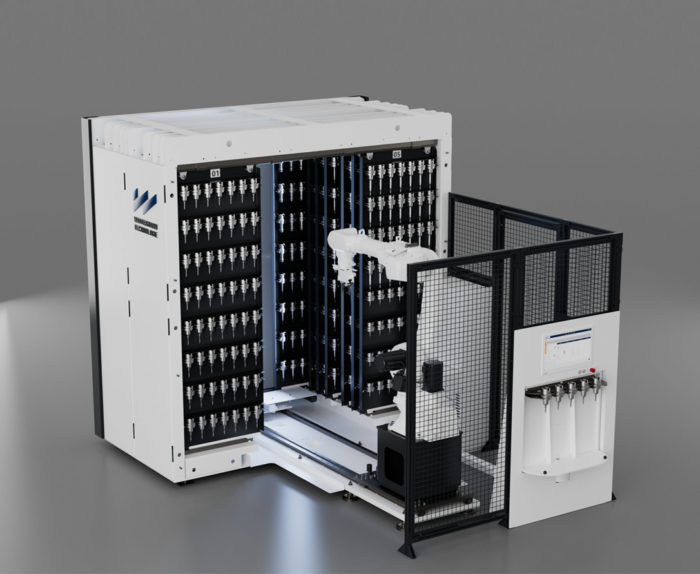

Tool storage TOOL-L

Tool storage TOOL-L

A world first – the TERMINAL tool with maximum packing density

The TOOL-L tool storage system from Wassermann has many options to revolutionize tool supply at the tool magazines. The most important highlights at a glance:

Compact and flexible: ready for new tasks at any time

  • Unmanned shifts due to higher stock of sister tools
  • Keep special tools centrally available for multi-machine use
  • Resource check per CNC program for reduced, unwanted downtimes
  • AMR connection for central tool presetting
  • Better tool life utilization and therefore lower tool costs
  • Greater ergonomics for operators thanks to an input/output station



WASSERMANN AUTOMATION – Intelligence in cell control

Our control technology sustainably optimizes your production costs

With its innovative cell control and user-friendly HMI, Wassermann Autonation has created the conditions for convenient and easy-to-understand use of the central TOOL-L storage system.

The features:

  • Automatic tool alignment and tool life calculation with the machine tools
  • Simple operation via drop-down and drop-through function
  • HMI in touch screen version
  • Optional master computer from WASSERMANN AUTOMATION, PROCAM, SOFLEX, EVOMECS possible

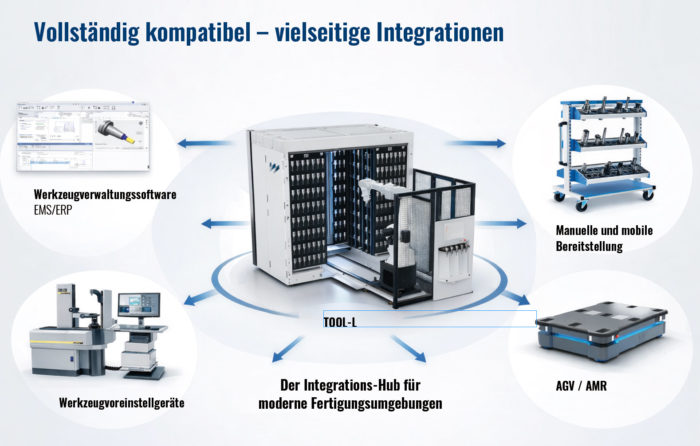

  • Full digitalization via standardized interfaces: OPC AU, MQTT, AMQP, Web APIs
  • Can be integrated into new systems as well as retrofitted to existing machines
